EB00031

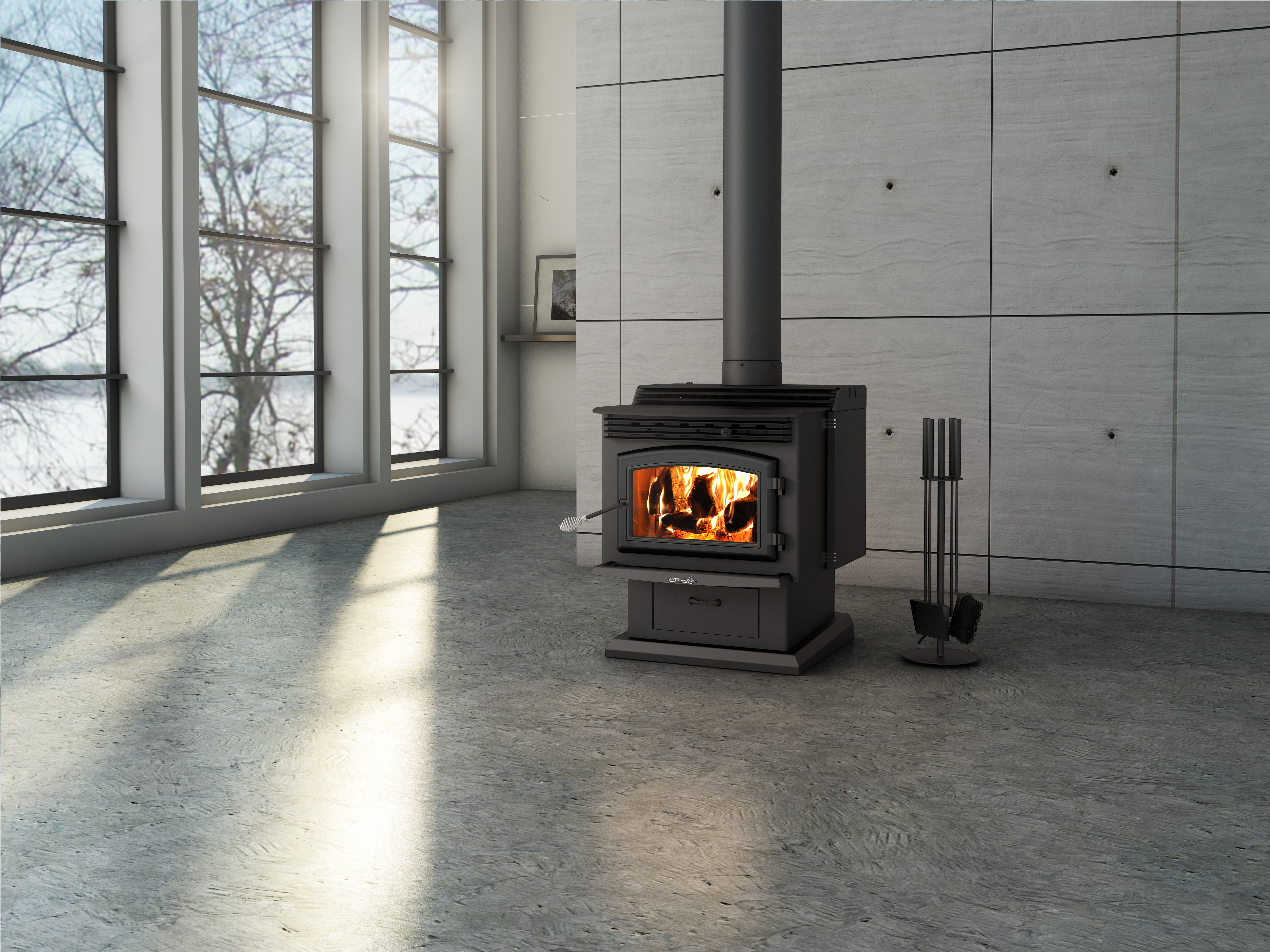

SOLUTION 3.4 WOOD STOVE WITH BLOWER

Fuel type : Dry cordwood
Maximum log length : 56 cm
Size : 710 mm W X 773 mm D X 892 mm H
CO at 13% O2 : 0.24 %

From 2,292.00 € TTC *

* All black. Consult your local dealer to obtain a price with other options or finishes. Price do not include freight and installation charges.

  • Description
  • Options and Accessories
  • Specs / Manual

Description

The Solution 3.4 is the ultimate device for people who want all the power possible from a wood heating system. Its huge 0,096 m3 firebox holds 56 cm logs and provides an outstanding burning time. This appliance is built with a top steel of good thickness and also has a baffle moulded in C-Cast, a light and revolutionary refractory material that guarantees exceptional durability.

The weighted average of CO at 13% O2 produced by this appliance comes to less than 0,24%, making this stove one of the cleanest units in its range. Check out the technical specifications of the Solution 3.4 to find out more about the many features, that make up this unique product - and make the dream your own.

Register your warranty

High resolution images

Options and Accessories

Required accessories

Part number and description
Price
Shipping time

BLACK CAST IRON DOOR OVERLAY

AC01250

From 102.00 € TTC
In stock

BRUSHED SILVER CAST IRON DOOR OVERLAY

AC01254

From 306.00 € TTC
In stock

Options

Part number and description
Price
Shipping time

220 m³/hr VARIABLE SPEED BLOWER

AC01010

From 234.00 € TTC
In stock

Accessories

Adhesives, gaskets and insulation

Part number and description
Price
Shipping time

SILICONE AND 1/2" X 8' BLACK DOOR GASKET KIT

AC06000

From 18.00 € TTC
In stock

Paint

Part number and description
Price
Shipping time

METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL

AC05959

From 14.40 € TTC
In stock

Specs / Manual

Guides

Solution 3.4 wood stove install & owner's manual
(PDF - 1.5 Mo)

High resolution images

High resolution images

Appliance performance (1)

Fuel type : Dry cordwood
Heated volume (m³) : 225 - 625
Firebox volume (m³) : 0.096
Burn time (hours) : 9 - 10
Eciency : 72.1 %
CO at 13% O2 : 0.24 %
Nominal heat output : 20 kW

(1) Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.

General features

Maximum log length 56 cm
Diameter of smoke pipe outlet 150 mm
Baffle type C-Cast
Shipping Weight 255 kg
Door type Single, glass with cast iron frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 412 mm x 223 mm
Overall dimension (Height) 892 mm
Overall dimension (Width) 710 mm
Overall dimension (Depth) 773 mm
Door opening – dimension (Height) 217 mm
Door opening - dimension (Width) 454 mm
Firebox – dimension (Height) 338 mm
Firebox – dimension (Width) 581 mm
Firebox – dimension (Depth) 522 mm
Firebox thickness – Outline 5 mm
Thickness – Top 8 mm
Centre line of flue outlet to the side 355 mm
Centre line of flue outlet to the back 168 mm
Minimum clearances to combustibles*
Single wall pipe Double wall pipe
Clearance – back wall 400 mm 400 mm
Clearance – side wall 400 mm 400 mm
Clearance – placed in a corner 400 mm 400 mm
Clearance – top (measured from the platform on which the appliance is installed)** 1200 mm 1200 mm

* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
