Customize your product
EB00034
DESTINATION 1.6 WOOD STOVE
| Fuel type : | Dry cordwood |
| Maximum log length : | 43 cm |
| Size : | 662 mm W X 551 mm D X 834 mm H |
| CO at 13% O2 : | 0,0445 % |
Find a retailer near you:
Veuillez communiquer avec nous à l'adresse achateventuel@sbi-international.com.
- Description
- Options/Accessories
- Specs/Manual
Description

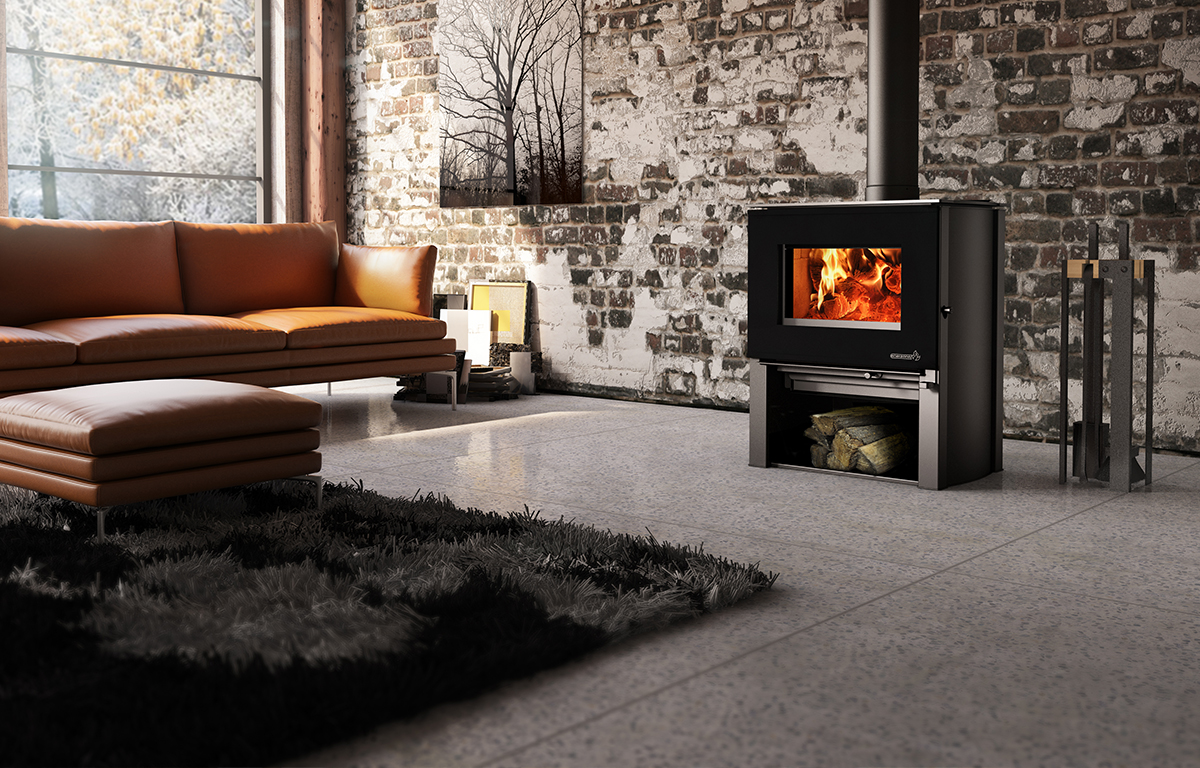

The Destination 1.6 is the ideal heating appliance for those looking for efficiency and a contemporary interior design. This small ecological wood stove provides a nominal heat output of 8,5 kW with a CO at 13% O2 of 0,24%. It features an incredible view of the fire and comes with an easy-to-operate door latch system that complements its clean lines.
In addition to providing a convenient and safe pedestal to store your logs, the Destination 1.6 can be customized according to your taste and décor, thanks to its modular side panels available in a variety of different finishes. You will also have the choice of adding a 220 m3/hr variable speed blower for improved heat distribution. Moreover, it can be connected to a fresh air kit without the need for any special adaptor.
High resolution images
Options/Accessories
Options
220 m³/hr VARIABLE SPEED BLOWER
AC01010
5"Ø X 4' INSULATED FLEX PIPE FOR FRESH AIR INTAKE KIT
AC02090
Accessories
Adhesives, gaskets and insulation
SILICONE AND 1'' X 8' BLACK DOOR GASKET KIT
AC06730
Paint
METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL
AC05959
Specs/Manual
Guides
Destination 1.6 wood stove install & owner's manual
(PDF - 3.8 Mo)
Destination 1.6 wood stove dimensions
(PDF - 0.4 Mo)
High resolution images
High resolution images
Appliance performance (1)
| Fuel type : | Dry cordwood | |
| Heated volume (m³) : | 115 - 340 | |
| Firebox nominal volume (m³) : | 0.045 | |
| Burn time (hours) : | 5 - 6 | |
| E ciency : | 77,20 % | |
| CO at 13% O2 : | 0,0445 % | |
| Nominal heat output : | 7 kW | |
(1) Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.
General features
| Maximum log length | 43 cm |
| Diameter of smoke pipe outlet | 150 mm |
| Baffle type | C-Cast |
| Shipping Weight | 158 kg |
| Door type | Single, glass with steel frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 403 mm x 229 mm |
| Overall dimension (Height) | 834 mm |
| Overall dimension (Width) | 662 mm |
| Overall dimension (Depth) | 551 mm |
| Door opening – dimension (Height) | 191 mm |
| Door opening - dimension (Width) | 400 mm |
| Firebox – dimension (Height) | 310 mm |
| Firebox – dimension (Width) | 460 mm |
| Firebox – dimension (Depth) | 260 mm |
| Model | Pedestal |
| Firebox thickness – Outline | 5 mm |
| Thickness – Top | 8 mm |
|
Minimum clearances to combustibles*
|
|
| Clearance – back wall | 381 mm |
| Clearance – placed in a corner | 203 mm |
| Clearance – side wall | 406 mm |
| Clearance – top (measured from the platform on which the appliance is installed)** | 1220 mm |
|
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). |
|
|
** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. |
|
